Material Brass as per IS 319
Plating Natural
Entry Threads BSC/ET

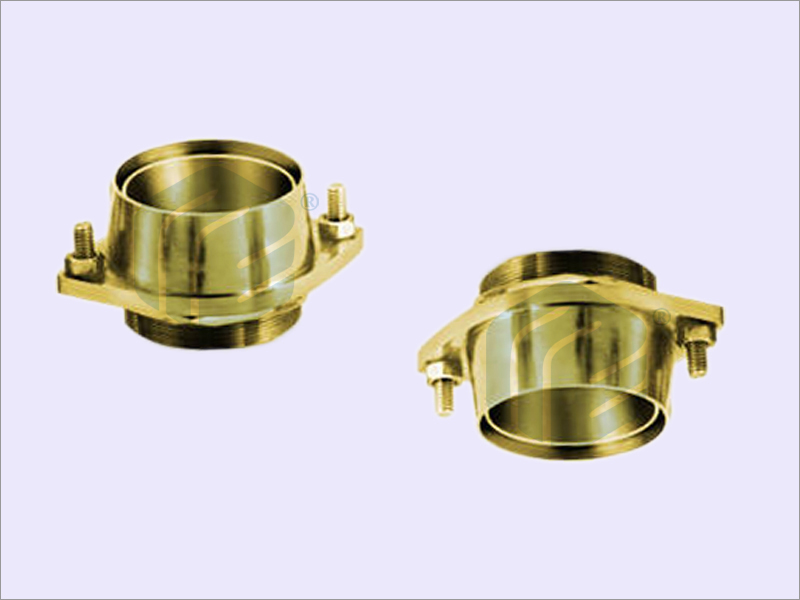

Application Flange type Glands are mainly used for armoured cables and are very easy and comfortable in fitting and give a strong grip to hold the cable. All the electricity boards and reputed firms use these types of Cable Glands.
Part of Gland Brass Check Nut | Brass Strip with MS Bolts | Brass Center Part | Brass Gland Body | MS Nut (2 Nos.)
Accessories All Metal Parts are accurately machined for ease of assembly. Shrouds and earth tags are supplied separately and should be specified when ordering the Gland.

Suitable Cable overall Dia. (mm) Nipple Entry Thread Cable Gland Dimensions

From

To

Inch.

mm

A

B

C

D

E

F

G

H

12.0

16.0

5/8"

16

12.5

17.0

15.5

13.0

45.0

28.0

2.5

3.0

16.0

18.0

3/4"

19

15.0

20.0

18.5

14.0

54.0

29.0

2.5

3.0

18.0

21.0

3/4"

19

06.0

21.0

19.5

15.0

55.0

30.0

2.5

3.0

21.0

25.0

1"

25

21.0

26.0

25.0

16.0

60.0

36.5

2.5

3.0

25.0

29.O

1.1/4"

32

27.0

32.0

31.5

17.0

65.0

43.0

3.0

4.0

29.5

33.0

1.3/8"

35

31.5

35.5

35.0

17.0

74.0

50.0

3.5

4.5

33.O

35.0

1-1/2"

38

33.5

37.5

37.5

20.0

76.0

51.5

3.5

4.5

35.0

38.0

1-1/2"

38

33.5

40.0

38.0

20.0

77.0

52.0

3.5

4.5

38.0

41.0

1-3/4"

45

37.5

43.0

41.0

18.0

84.0

56.0

3.5

4.5

41.0

45.0

1-3/4"

45

43.0

49.5

46.0

20.0

92.0

66.0

4.0

5.0

45.0

52.0

2"

50

49.0

53.5

53.0

20.5

96.0

68.5

4.0

5.0

52.0

59.0

2.1/4"

57

56.0

61.0

59.5

22.0

106.0

78.0

4.0

5.0

59.0

67.0

2.1/2"

63

60.5

65.0

65.0

22.0

114.0

81.5

4.0

5.0

67.0

76.0

3"

75

69.5

75.5

75.0

22.0

135.0

95.5

4.5

5.5

76.0

84.0

4"

100

92.5

96.5

98.5

25.0

158.0

114.0

5.5

6.5
